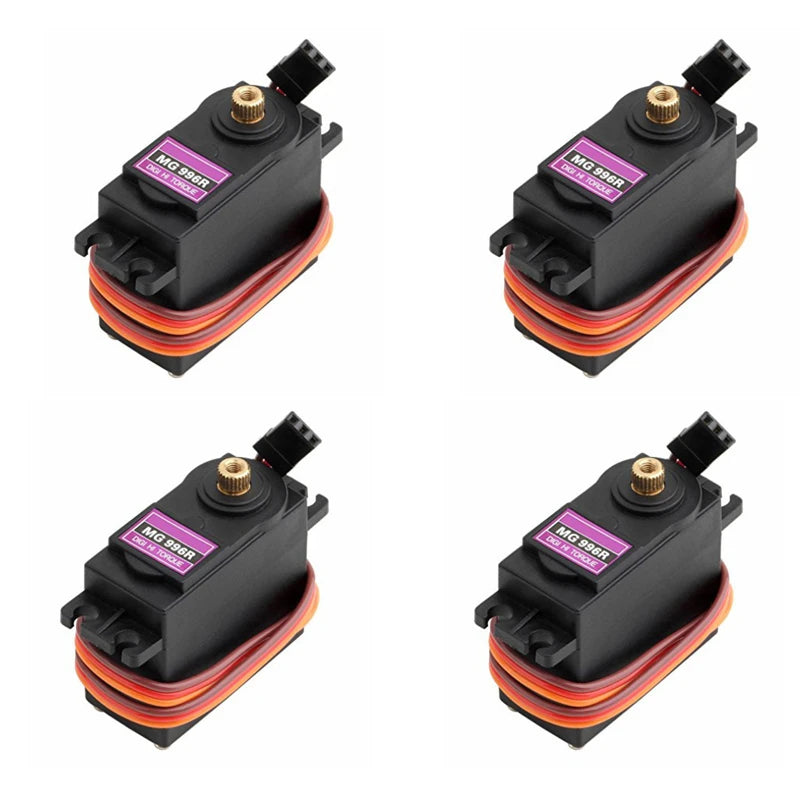

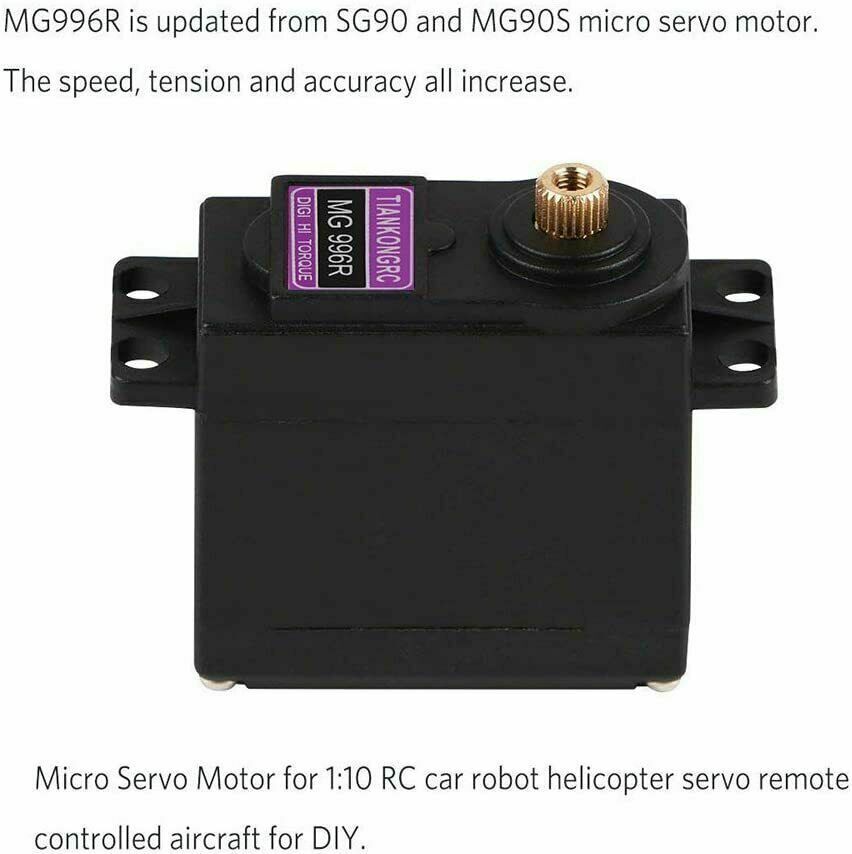

Description
The MG996R is a sophisticated digital servo motor, especially popular in the world of remote-controlled (RC) models. It features precise control, high torque, and durable metal gears. With a rotation range of 180°, 270°, or even 360°, this servo offers numerous possible uses in various applications, whether in RC cars, airplanes, or robots.
With a maximum torque of up to 15 kg/cm (at 6V), the MG996R offers impressive power, making it ideal for demanding tasks. Digital control enables more precise movements and faster response compared to analog servos. This is especially important for models that require fast maneuvers, such as race cars or helicopters.
The MG996R can operate with an operating voltage of 4.8V to 7.2V, making it flexible enough for various battery types. The servo's features are ideal for hobbyists and professionals seeking robust and reliable solutions for their RC projects.

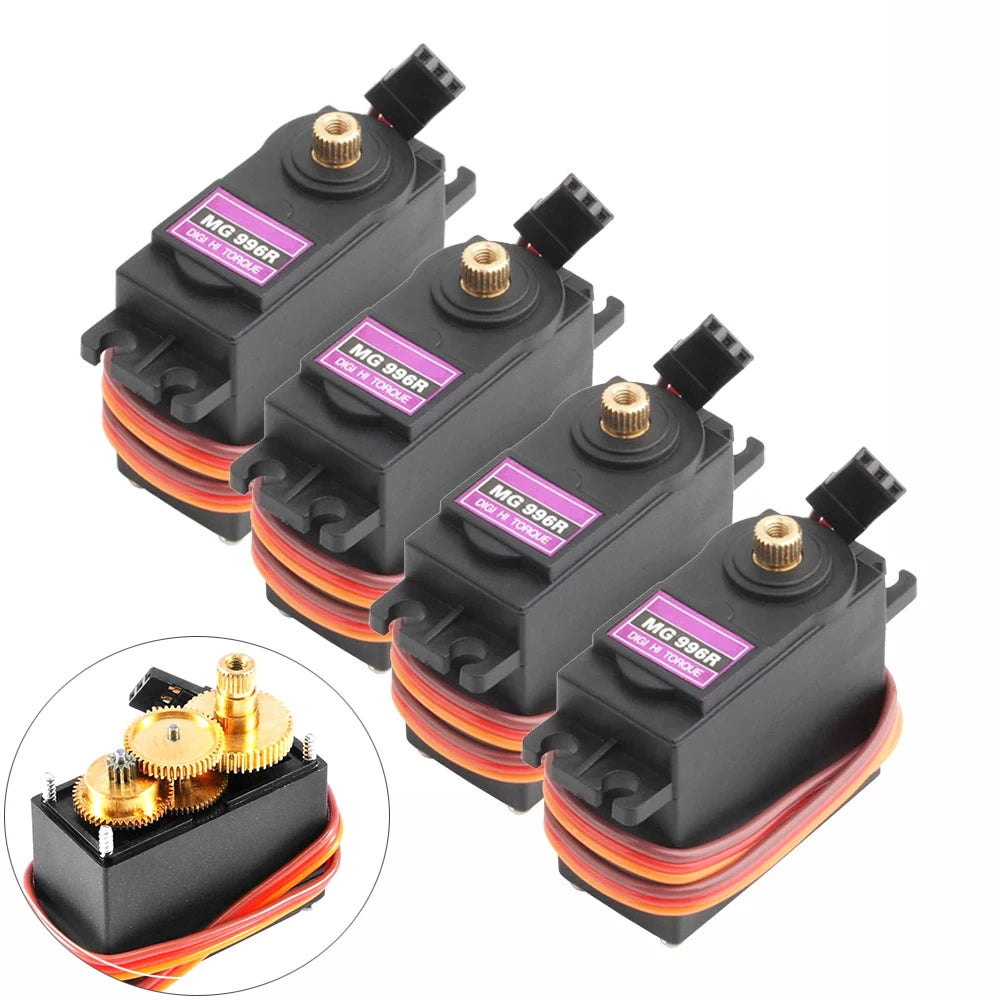

A standout feature of the MG996R is its metal gear. Unlike plastic gears, the metal gear not only offers greater durability but also minimizes the risk of damage under load. This robustness makes the MG996R ideal for use in harsh environments where other servos might fail.
Another advantage is the ability to choose between different rotation ranges. The 180° mode is ideal for applications requiring precise positioning, while the 270° mode offers extended mobility. The 360° mode, on the other hand, enables continuous rotation, making it perfect for robots and mobile platforms.
Areas of application
The versatility of the MG996R opens up numerous application possibilities. In RC cars, it ensures precise steering and fast braking. In model aircraft, the servos can be used to control the flaps or rudder to ensure flight stability. The MG996R also finds application in robotics, for example in grasping arm robots or autonomous vehicles, where precise movements are essential.
Installation of the MG996R is straightforward thanks to its standardized connector and simple mounting. Many RC enthusiasts also appreciate the ability to easily swap the servo for more powerful models without having to make extensive adjustments.

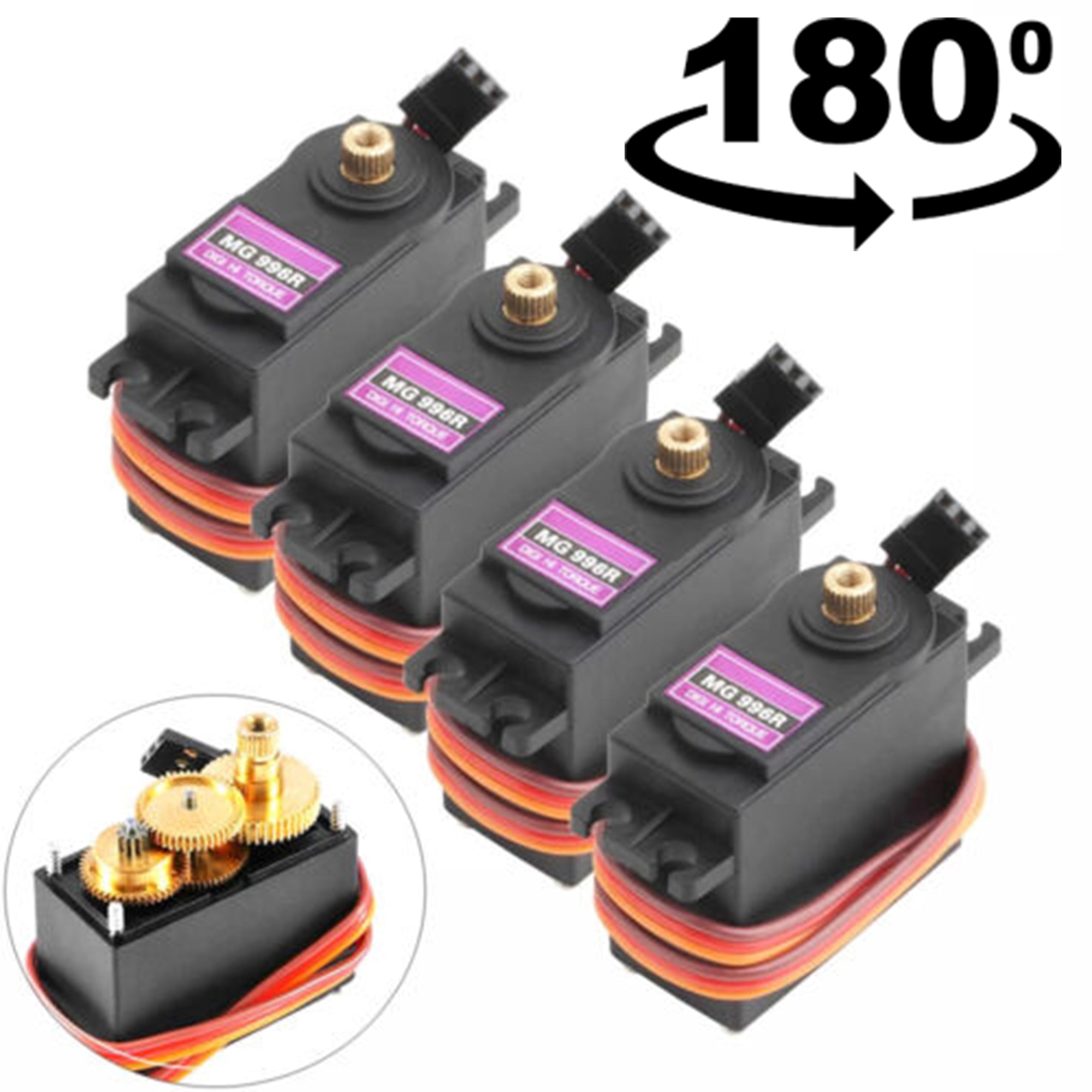

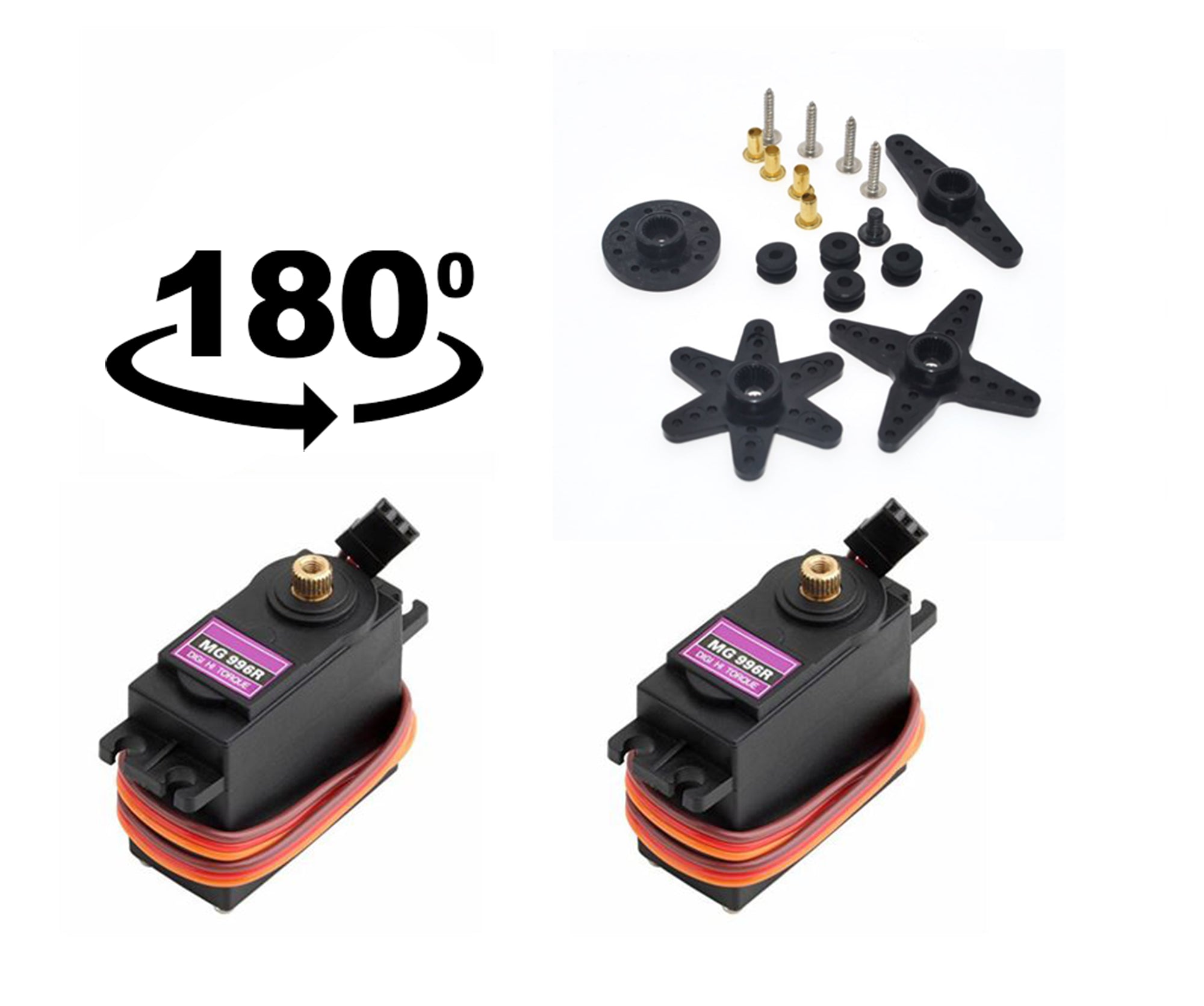

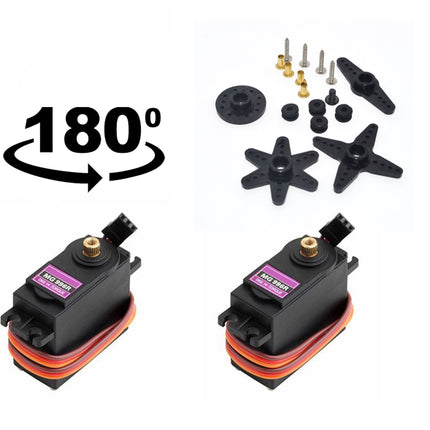

MG996R 180° angle
Technical data:
- Dimension: 40.8 * 20.1 * 38mm/1.61 * 0.79 * 1.5 inch
- Connection cable length: 300 mm/11.8 inches
- Weight: 60 g
- Maximum angle: 270 °
- Operating speed: 0.16 sec./60 degrees (6 V)
- Operating speed: 0.14 sec/60 degrees (7.2 V)
- Torsional moment: 12kg.cm.at (6V)
- 13kg.cm.at (7.2 V)
- Temperature range: 0-55 ℃
- Operating voltage: 6-7.2 V

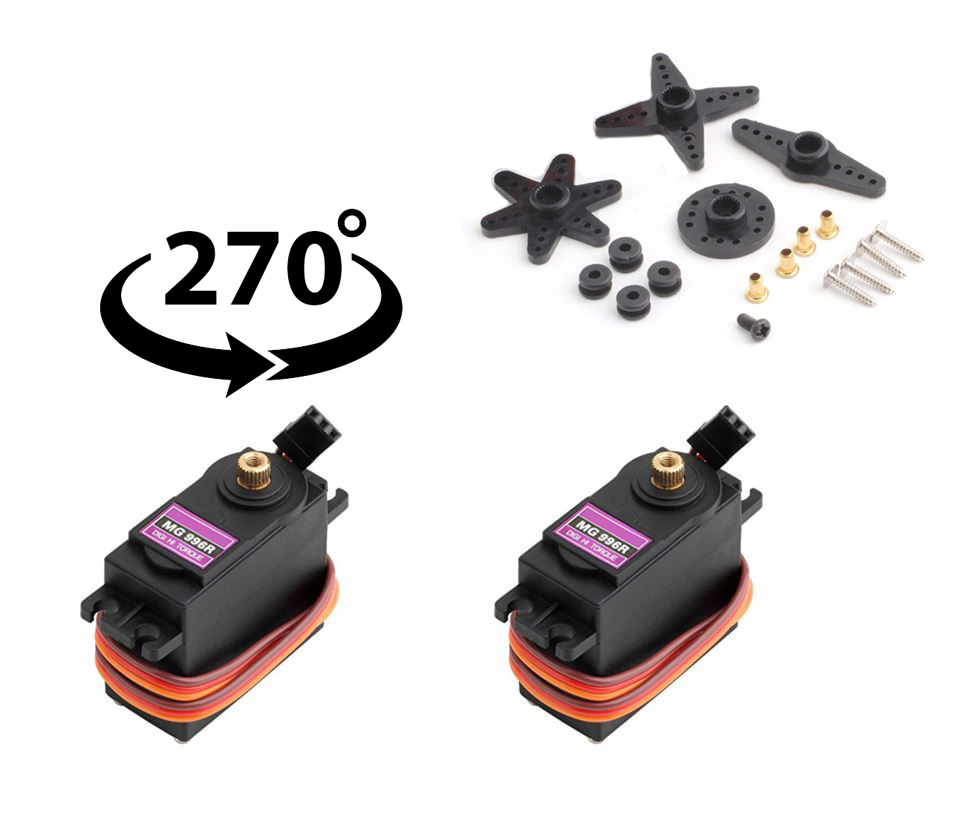

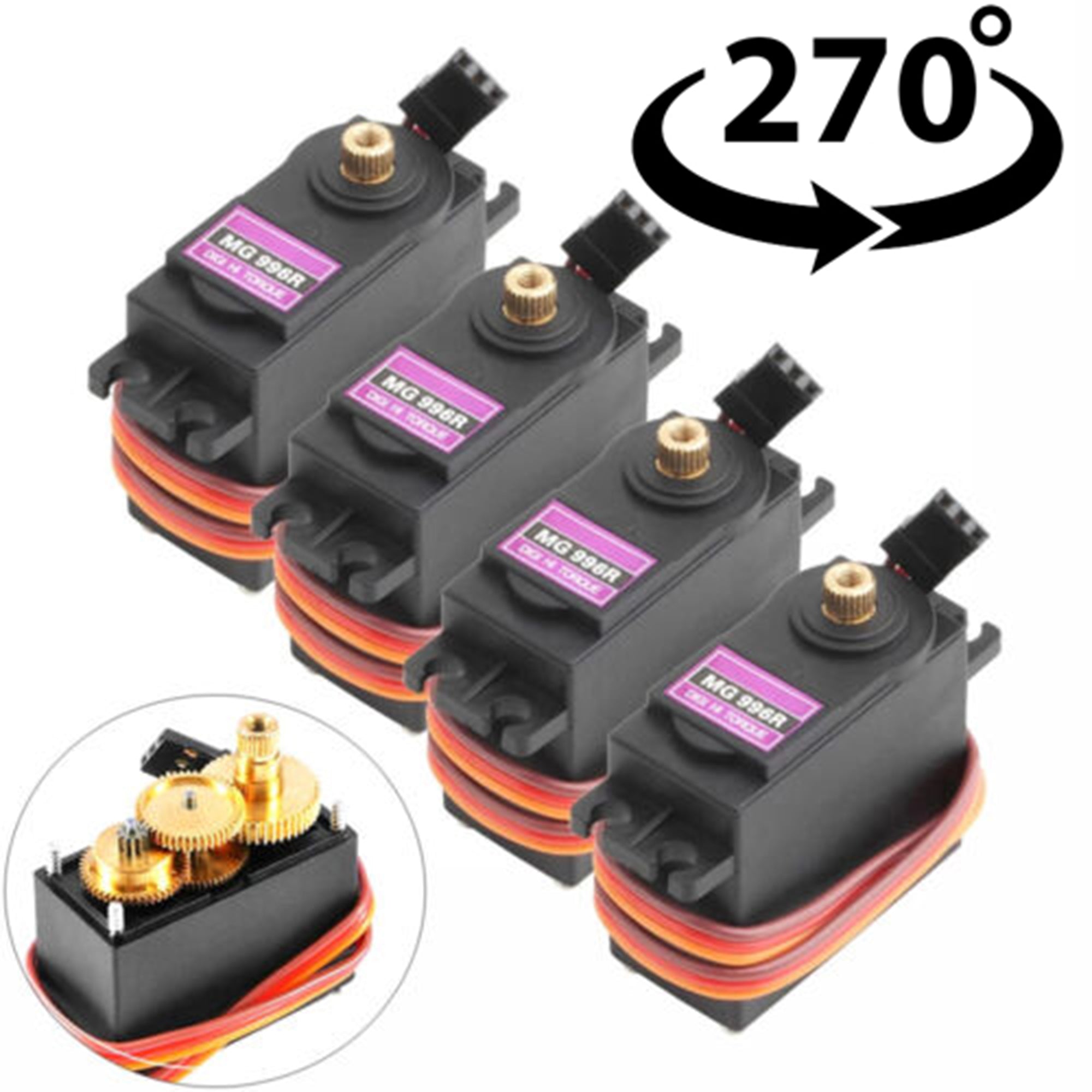

MG996R 270° angle
Technical data:
- Dimension: 40.8 * 20.1 * 38mm/1.61 * 0.79 * 1.5 inch
- Connection cable length: 300 mm/11.8 inches
- Weight: 60 g
- Maximum angle: 270 °
- Operating speed: 0.16 sec./60 degrees (6 V)
- Operating speed: 0.14 sec/60 degrees (7.2 V)
- Torsional moment: 12kg.cm.at (6V)
- 13kg.cm.at (7.2 V)
- Temperature range: 0-55 ℃
- Operating voltage: 6-7.2 V

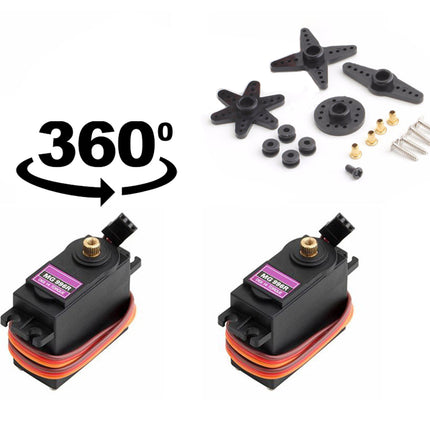

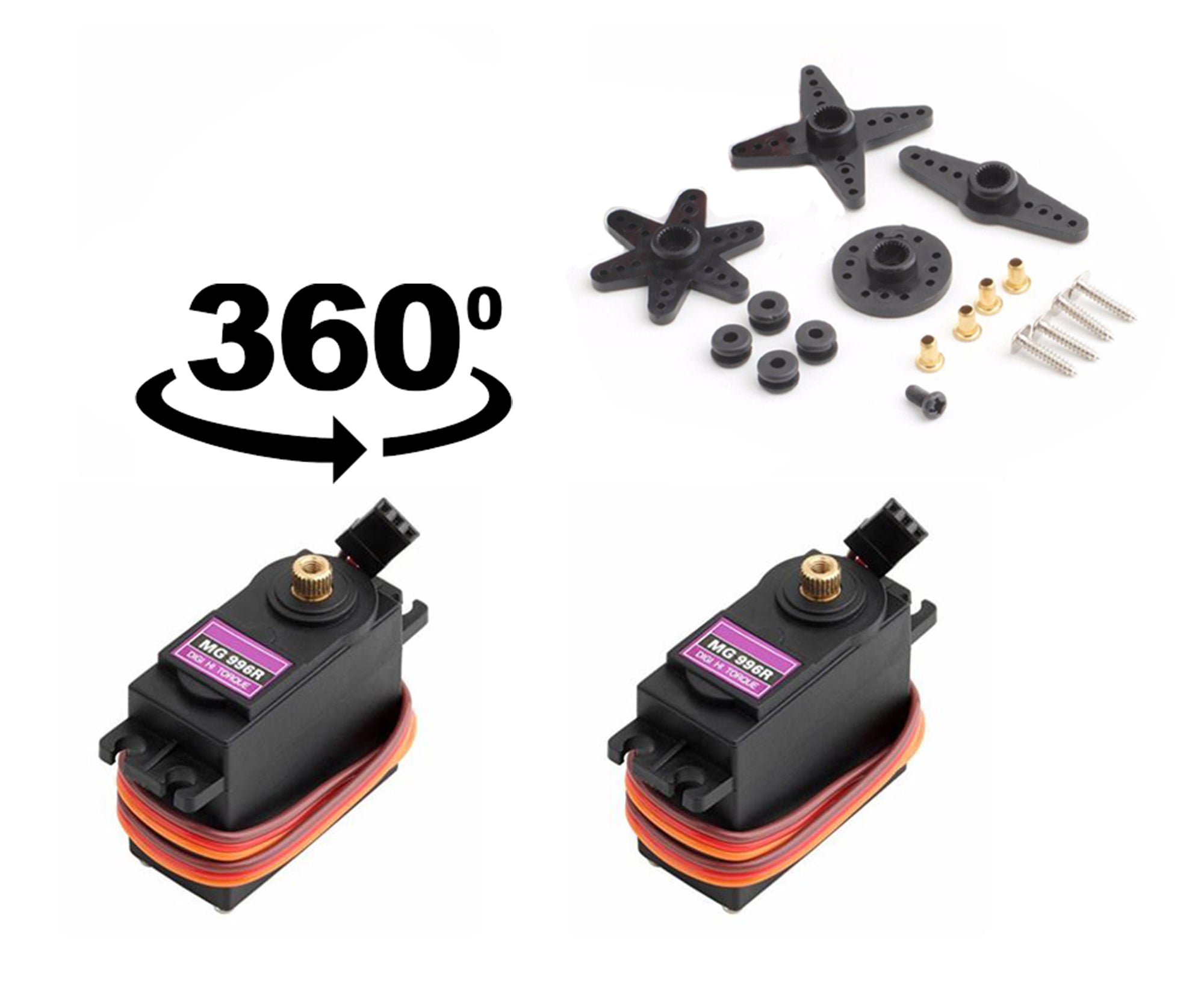

MG996R 360° rotation (continuous rotation either left or right)
Technical data:
- Dimension: 40.8 * 20.1 * 38mm/1.61 * 0.79 * 1.5 inch
- Connection cable length: 300 mm/11.8 inches
- Weight: 60 g
- Maximum angle: 360 ° (rotates continuously)
- Operating speed: 0.16 sec./60 degrees (6 V)
- Operating speed: 0.14 sec/60 degrees (7.2 V)
- Torsional moment: 12kg.cm.at (6V)
- 13kg.cm.at (7.2 V)
- Temperature range: 0-55 ℃
- Operating voltage: 6-7.2 V

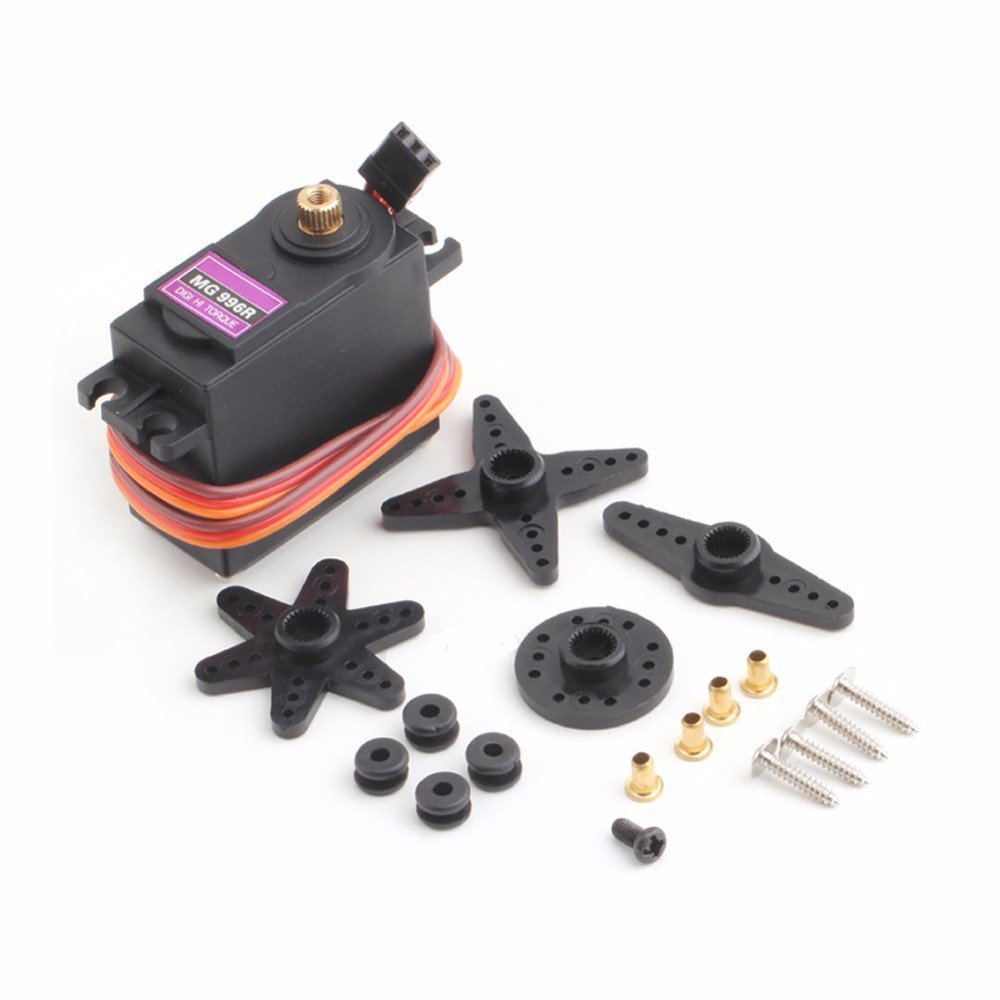

Scope of delivery :
