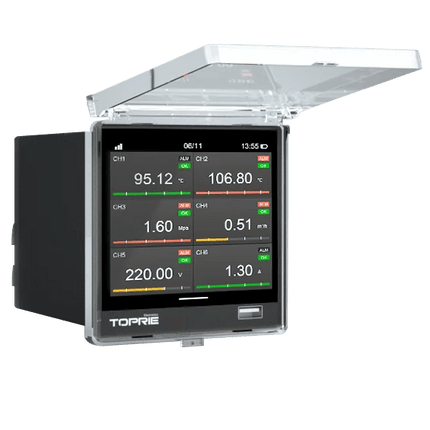

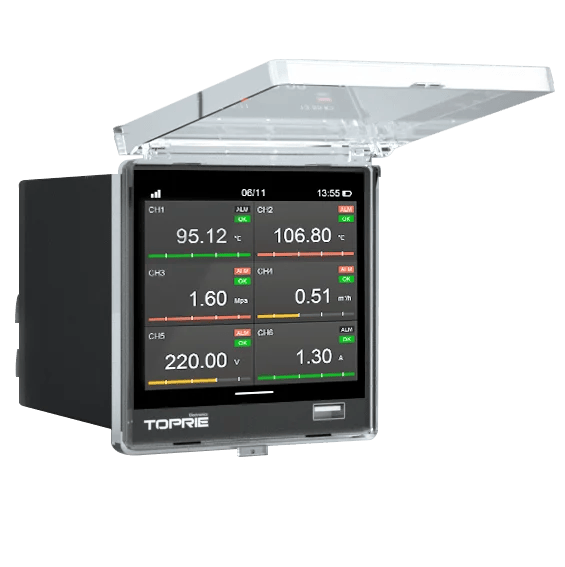

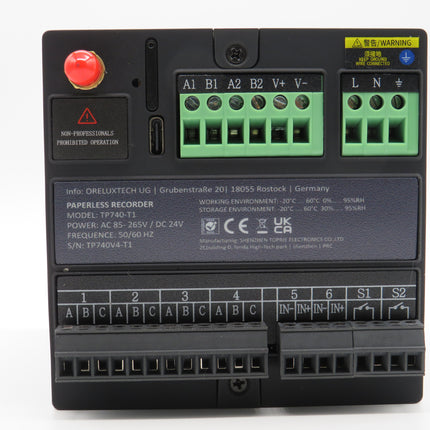

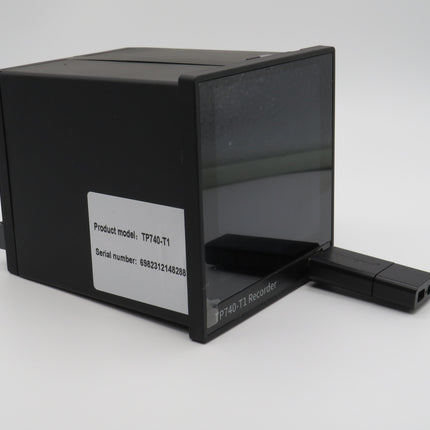

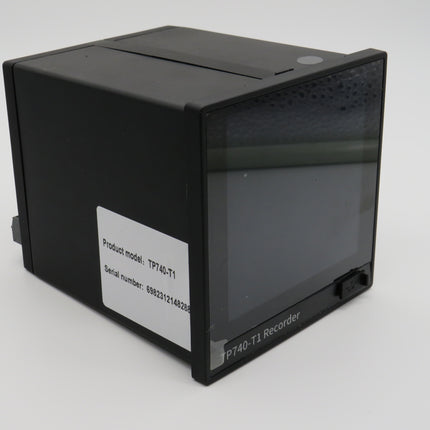

Product description: 16-channel paperless recorder data logger

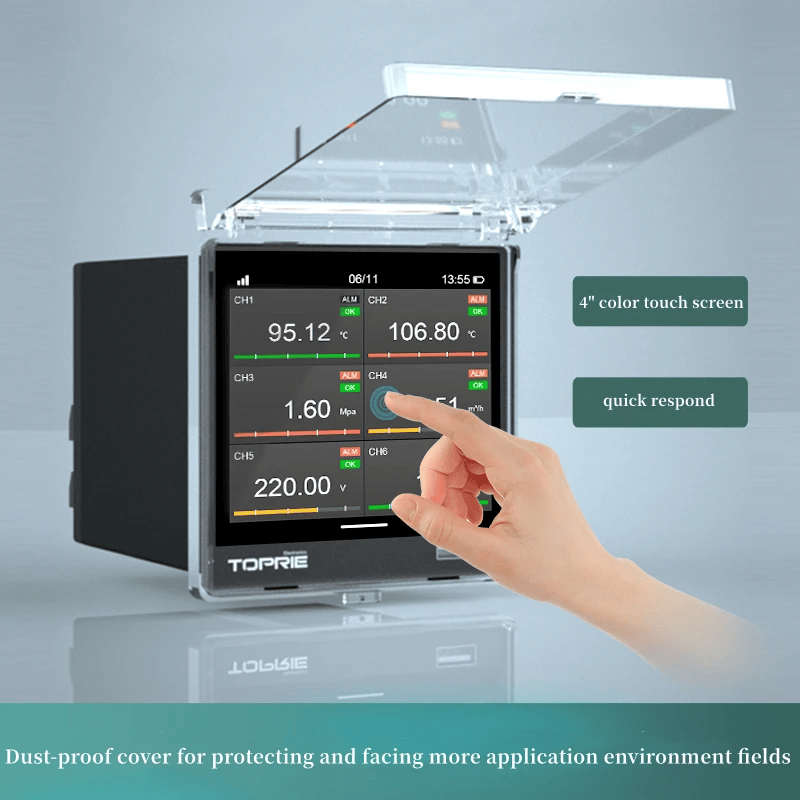

The 16-channel paperless recorder offers universal analog signal input and is ideal for precise data acquisition in a variety of applications. With a powerful touchscreen interface, intuitive operation allows for easy navigation through the versatile functions.
Technical specifications:
-

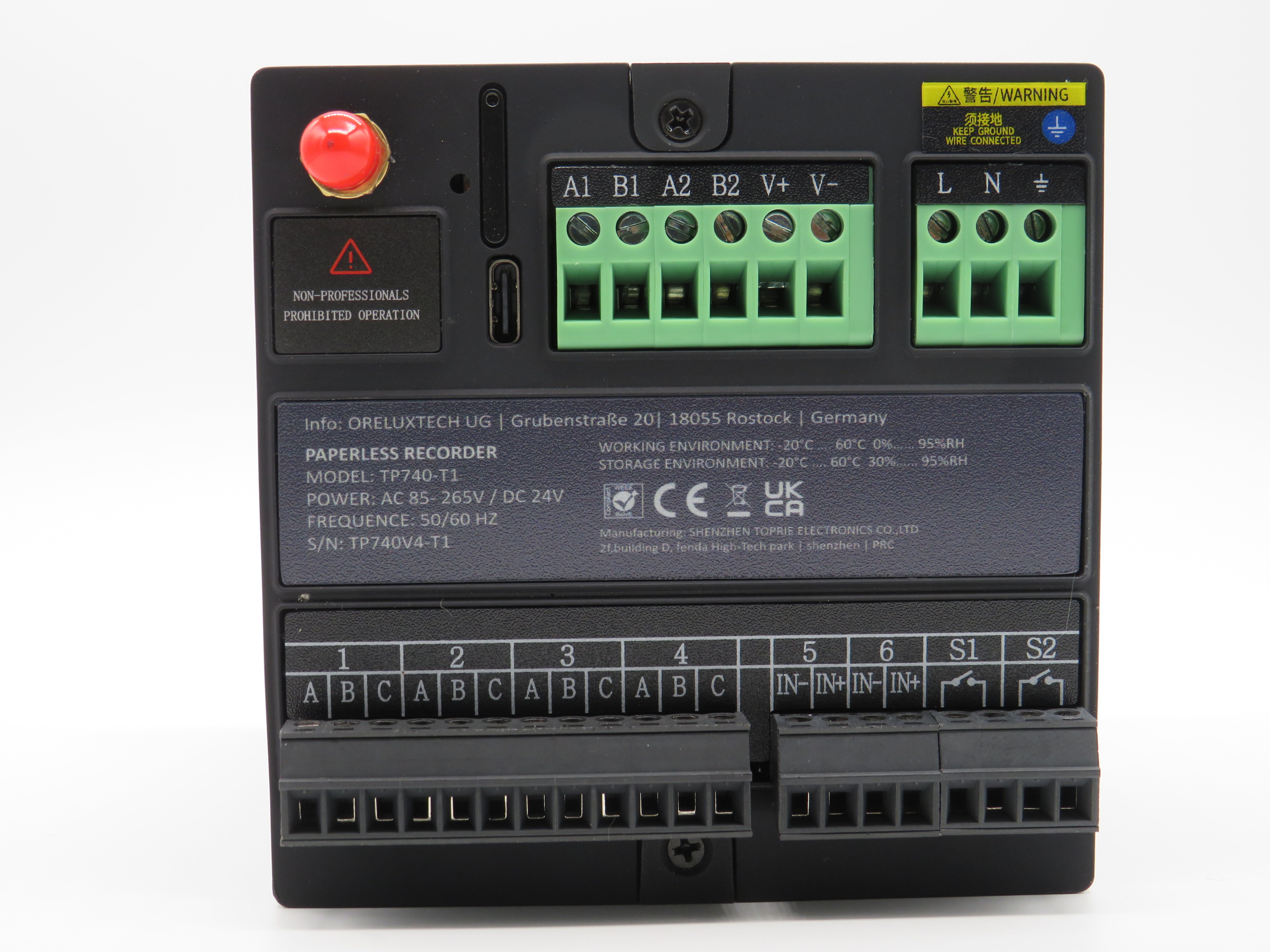

Power supply : AC 85V~265V / DC 24V~110V (optional), with a low power consumption of ≤5VA, depending on the number of channels.
-
Number of channels : The recorder supports 1 to 12 analog inputs and 2 to 4 optional pulse inputs.
-

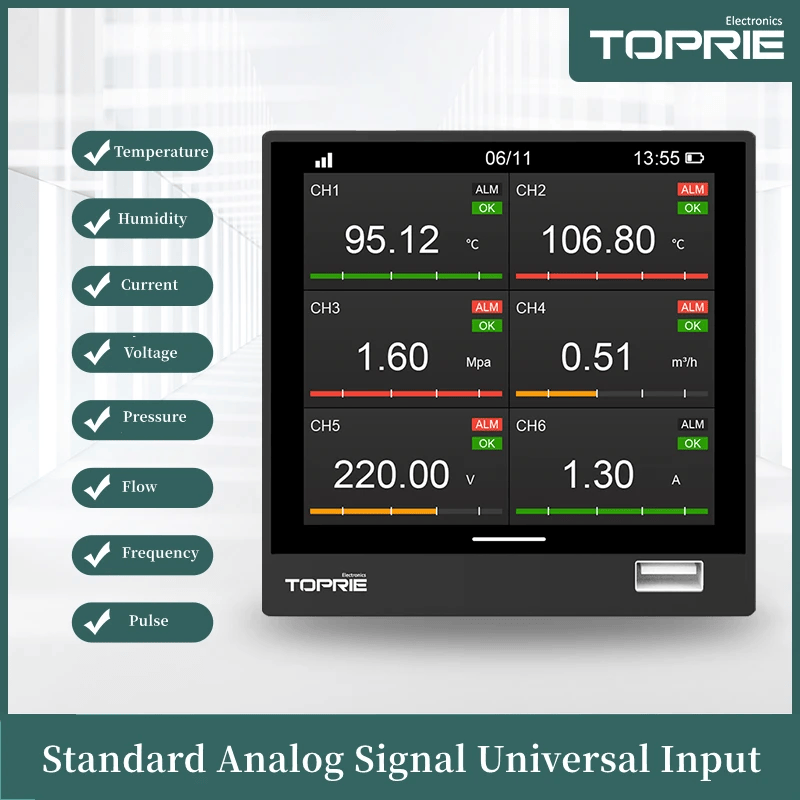

Input signals : Compatible with a wide range of thermocouples (K, E, R, B, N, T, J, S, WRE5-26, WRE-25) and resistance thermometers (Pt100, Pt1000).
-
Current and voltage inputs : Supports 4-20 mA, 0-10 mA and voltages from 0-5V to ±100mV.
-
Storage : Built-in 8G TF memory allows recording over 2000 days at one minute interval.
-
Alarm functions : Each channel is equipped with four alarm modes to meet both upper and lower limit values.
-

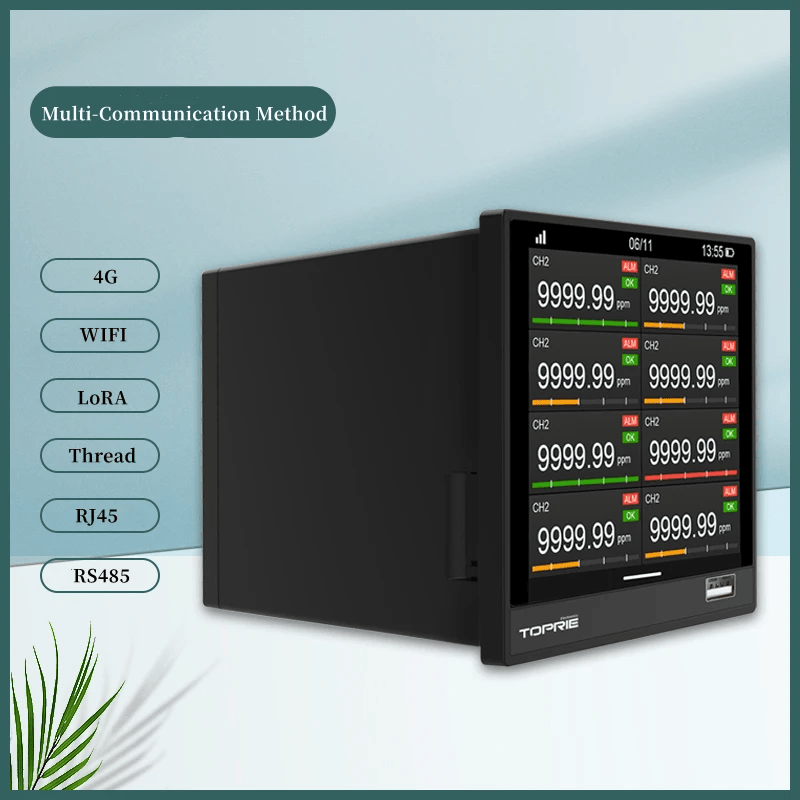

Communication : Equipped with RS485, MODBUS RTU, Ethernet MODBUS TCP as well as wireless communication via 4G, WIFI, LORA and Thread.
-
Environment : The recorder operates reliably at temperatures from -20°C to 60°C and humidity from 0 to 95% RH. The housing is made of fire-resistant ABS material, ensuring additional safety.
With a compact design (96x96x102 mm) and easy installation (opening size 92x92 mm), this recorder is the perfect solution for modern data acquisition needs.
