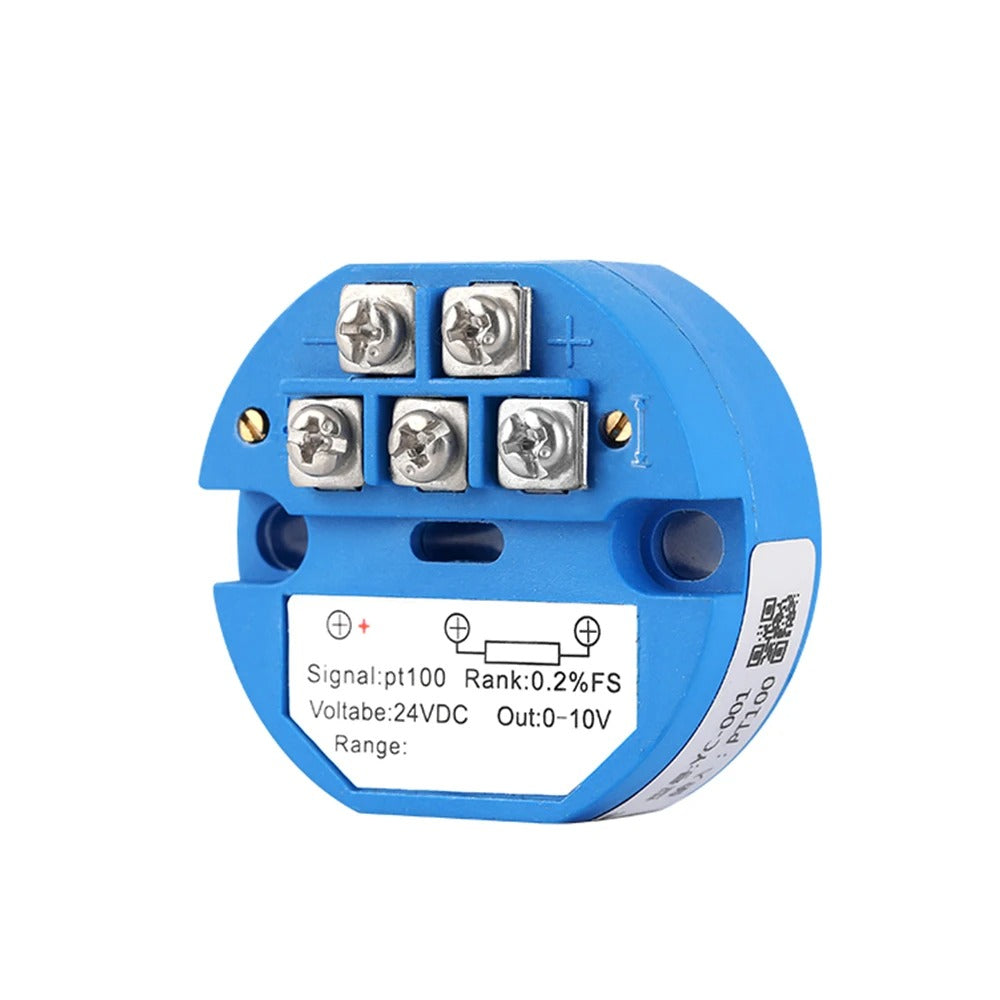

-50°C to +500°C Temperature Sensor RTD PT100 Transmitter Module 0-10V Thermometer DC 24V

Description

The PT100 RTD is a high-precision temperature sensor that plays a key role in many industrial applications. Its design is based on a fine platinum wire whose electrical resistance depends on temperature. At 0 degrees Celsius, this sensor has a resistance of exactly 100 ohms, which gives it its name.

The PT100 RTD operates on the principle that the resistance of a metal increases with increasing temperature. This property makes the PT100 particularly suitable for precise temperature measurements. Unlike other temperature sensors, such as thermocouples, the PT100 RTD offers excellent linearity and very low drift over time, making it a reliable choice for many industrial applications.

Another advantage of the PT100 RTD is its high accuracy. In critical applications, such as the chemical or pharmaceutical industries, it is crucial to measure precise temperatures to ensure product quality. The PT100 can measure temperatures in a range from -200 to +850 degrees Celsius, making it versatile.

The installation and calibration of the PT100 RTD is relatively simple. It is often used in conjunction with special measuring devices that precisely convert resistance changes into temperature values. This allows for easy integration into existing process monitoring systems.


Characteristics:

  • Sensor: Pt100
  • Measuring range: -50 to +500 °C
  • Output: 0-10V
  • Working voltage: DC 24V
  • Accuracy: plus or minus 0.2 percent FS
  • Dimensions: 45 mm diameter (1.77 inches)
  • Material: plastic
  • Weight: 25 g

-50°C to +500°C Temperature Sensor RTD PT100 Transmitter Module 0-10V Thermometer DC 24V

Product form

The PT100 RTD is a high-precision temperature sensor that plays a key role in many industrial applications. Its design is... Read more

8 in stock Next-day delivery  Midweeks
 Monday to Friday we offer next day delivery if the product is on stock and exceptions on holidays.

Weekends
We do not offer deliveries on the weekends.

International
Depending on where you're located, we offer next day delivery. Check status on this link

€19,99 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Jun 27, 2026 14:00:00 +0200
    • Free shipping for all orders over 50€

    • Hassle-free return , 30-day return policy

    Description

    The PT100 RTD is a high-precision temperature sensor that plays a key role in many industrial applications. Its design is based on a fine platinum wire whose electrical resistance depends on temperature. At 0 degrees Celsius, this sensor has a resistance of exactly 100 ohms, which gives it its name.

    The PT100 RTD operates on the principle that the resistance of a metal increases with increasing temperature. This property makes the PT100 particularly suitable for precise temperature measurements. Unlike other temperature sensors, such as thermocouples, the PT100 RTD offers excellent linearity and very low drift over time, making it a reliable choice for many industrial applications.

    Another advantage of the PT100 RTD is its high accuracy. In critical applications, such as the chemical or pharmaceutical industries, it is crucial to measure precise temperatures to ensure product quality. The PT100 can measure temperatures in a range from -200 to +850 degrees Celsius, making it versatile.

    The installation and calibration of the PT100 RTD is relatively simple. It is often used in conjunction with special measuring devices that precisely convert resistance changes into temperature values. This allows for easy integration into existing process monitoring systems.


    Characteristics:

    • Sensor: Pt100
    • Measuring range: -50 to +500 °C
    • Output: 0-10V
    • Working voltage: DC 24V
    • Accuracy: plus or minus 0.2 percent FS
    • Dimensions: 45 mm diameter (1.77 inches)
    • Material: plastic
    • Weight: 25 g
