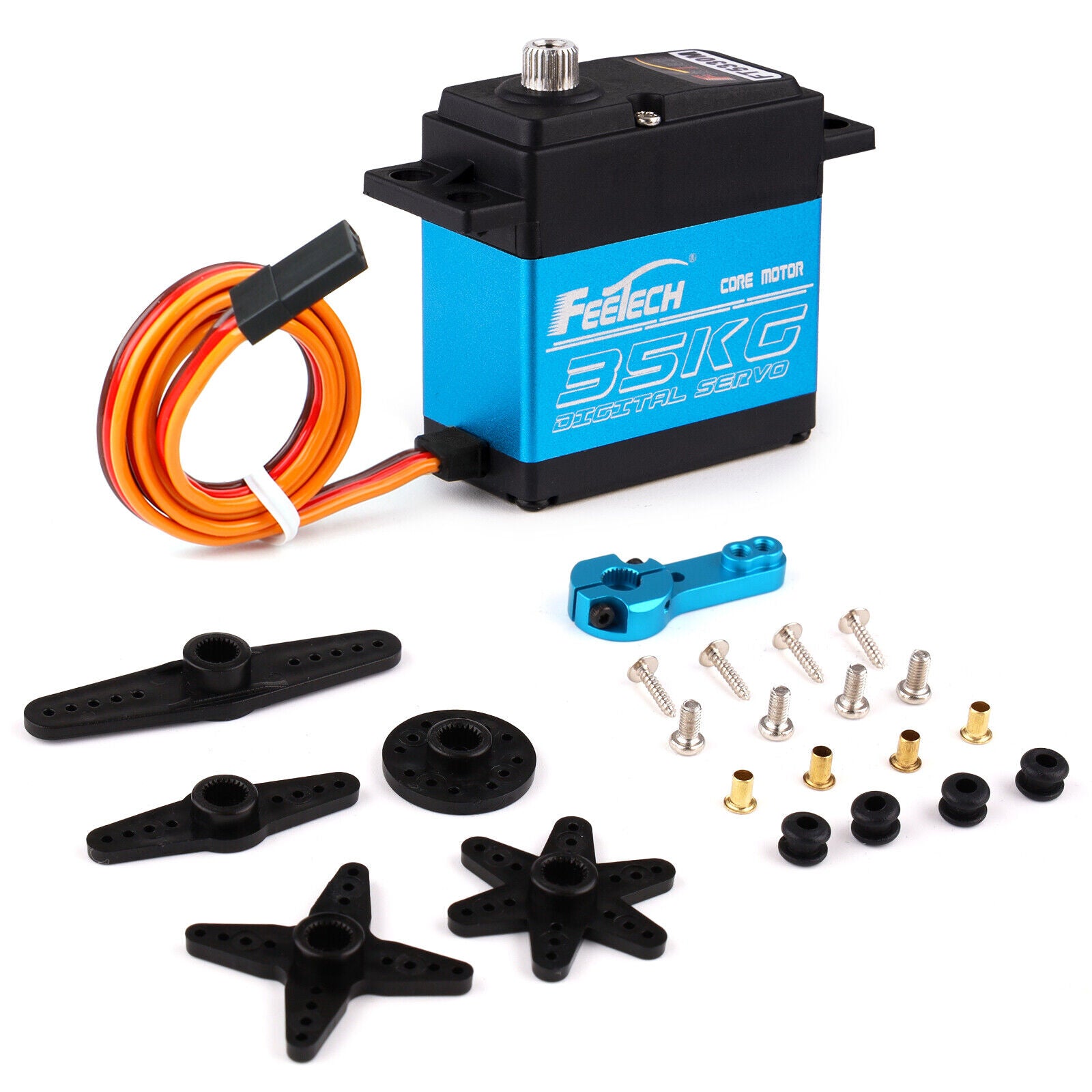

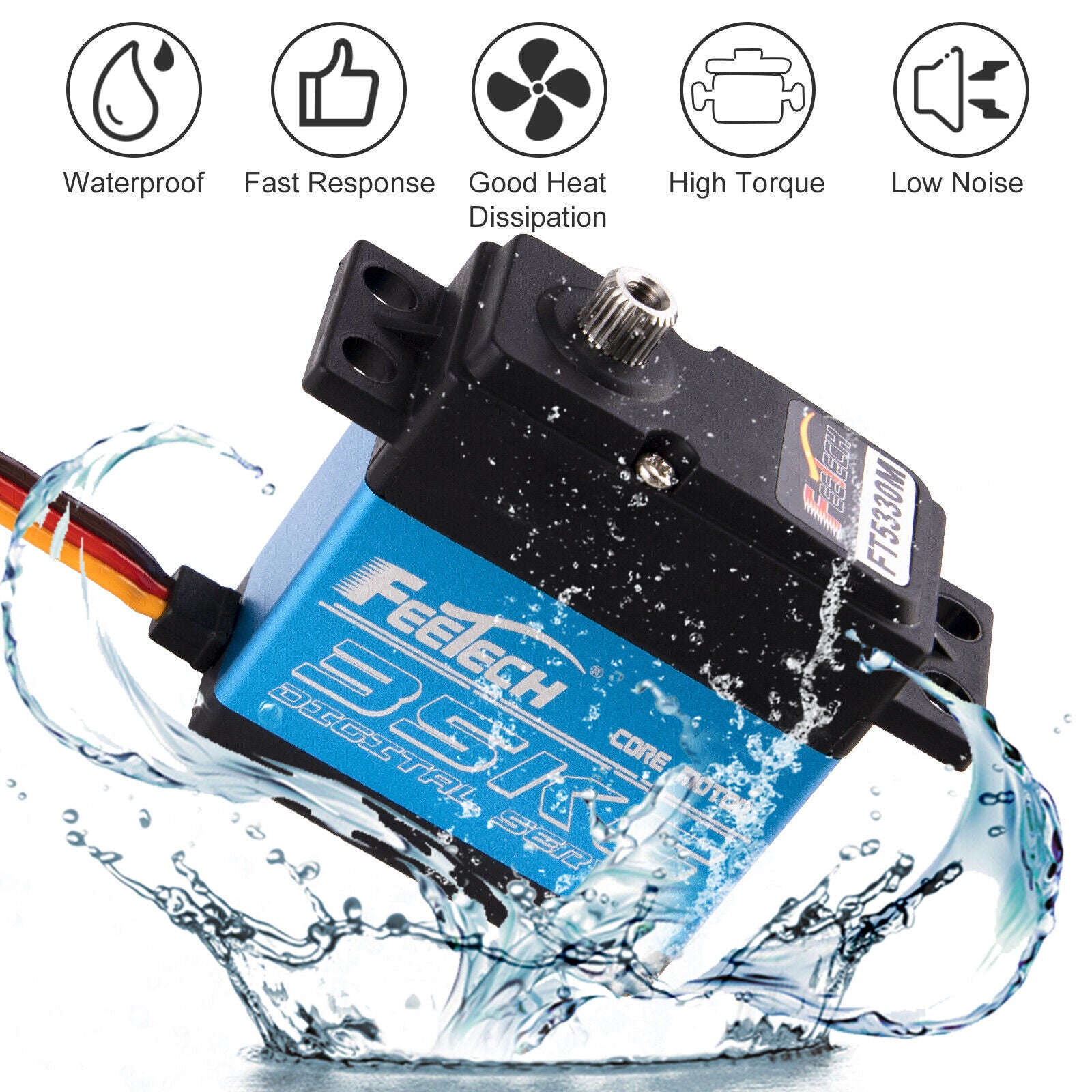

25kg / 35Kg High Torque Motor Servo Waterproof Digital up to 360° Servo RC

Description

Steering angle: 180 degrees Control by remote control

  • Current: 4.8V/470mA 6.0V /650mA
  • Load current: 4.8V/750mA 6.0V/950mA
  • Dead band:2usec
  • Lifespan:>15000 times without load
  • Moving angle: 60 ° ± 10 °
  • Stick Type: MOS stick
  • Motor type: Cored motor
  • Potentiometer type: Direct drive
  • Signal Booster Type: Digital
  • Size: 40.5X20.2X40.3mm
  • Weight: 62g (without accessories)
  • Ball bearings: 2BB

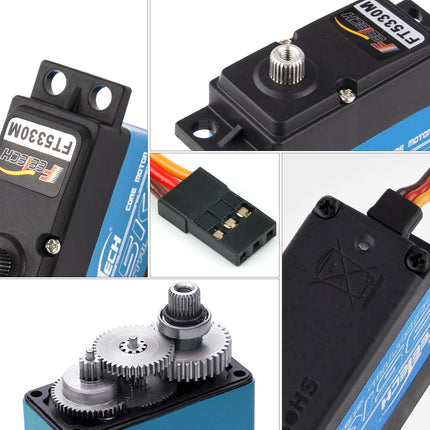

  • Gearbox Material: Metal Gearbox
  • Case Material: PA66+fiber40%
  • Wire length: 260mm
  • Connector type: 26AWG,JR connector
  • Brown Wire: Negative
  • Red wire: Positive
  • Orange wire: signal
  • Application: RC car, RC airplane, helicopter

25KG servo:

  • Storage temperature range: -30 °C ~ 80 °C
  • Operating temperature: -25 °C ~ 70 °C
  • Temperature range: -25 °C ~ 70 °C
  • Humidity range: 65% ± 10%
  • Size: 40.0*20.5*40.5mm
  • Weight: 56g ± 2g
  • Gearbox Type: 5 Metal
  • limit angle: 360 °
  • bearing: 2BB
  • Head gear spline: 25T Diameter: 5.9mm
  • Head type: plastic, POM
  • Case: Engineering plastic (PBT)+ aluminum alloy
  • Connector wire: 320mm ± 5mm
  • Motor: Carbon brush motor

Steering angle: 180 degrees Control by remote control


  • Voltage: 4.8 V-7.2 V
  • no load speed: 0.18 sec/60 °-0.14 sec/60 °
  • Current: 140mA - 200mA
  • Peak Torque: 23.5kg.cm-26.8kg.cm
  • Current: 2600mA ± 10% - 3400mA ± 10%
  • Voltage range: 4.8-7.2 V
  • Command Signal: Pulse width change
  • Amplifier Type: Digital Controller
  • Pulse wide range: 500 ~ 2500usec
  • Neutral position: 1500usec

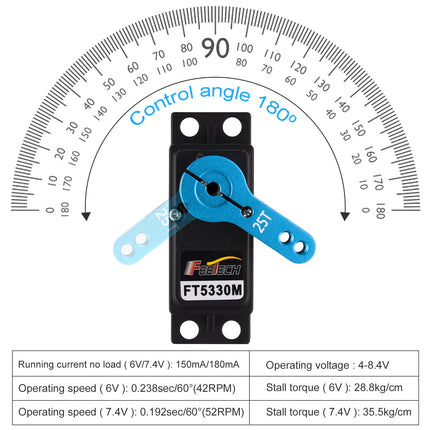

  • Running degree: 180 ° ± 3 ° (when 500 ~ 2500usec)
  • Dead band width: 5 usec
  • rotating direction counterclockwise: (when 1000 ~ 2000usec)

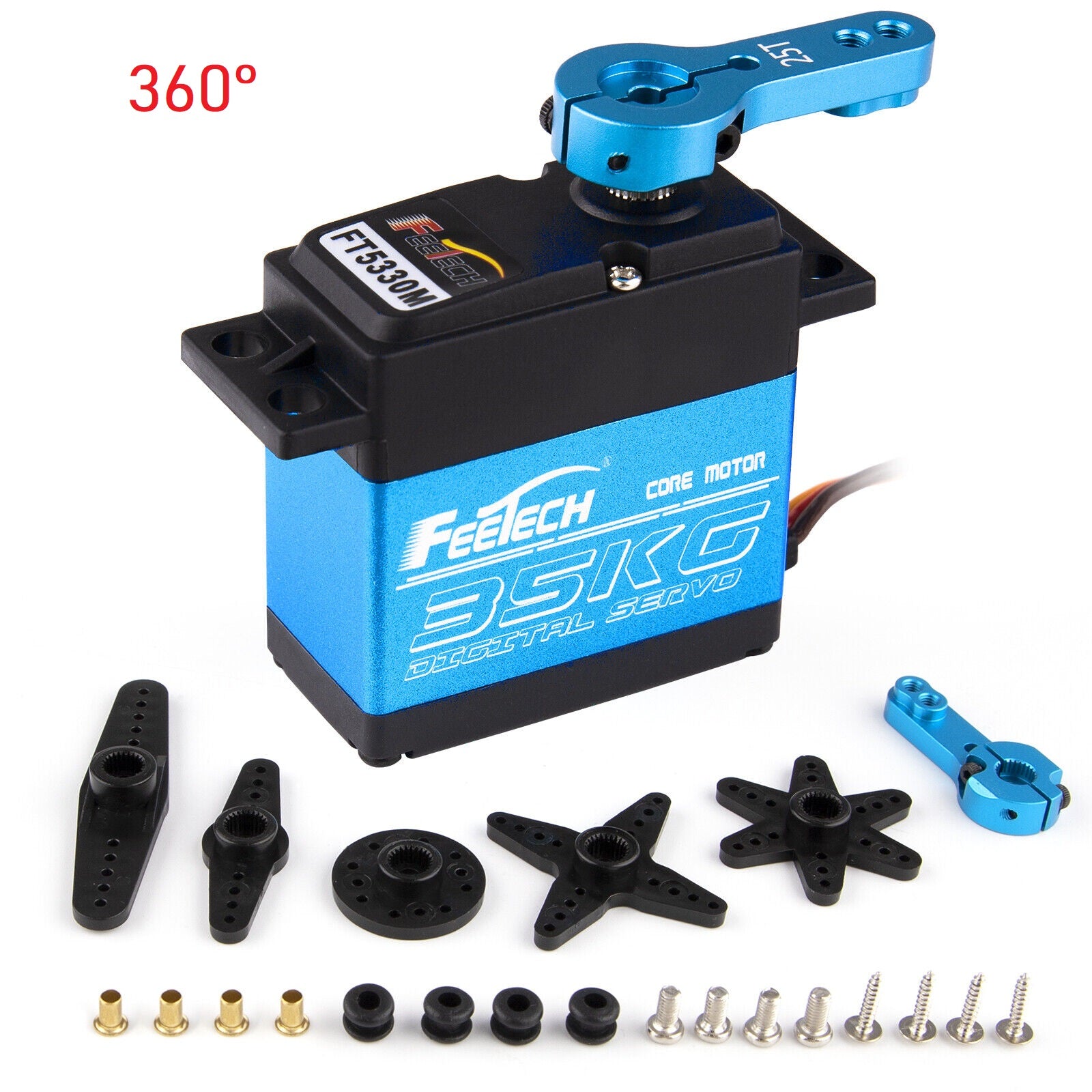

Attention !!! 360° Servo: Rotate continuously either left or right

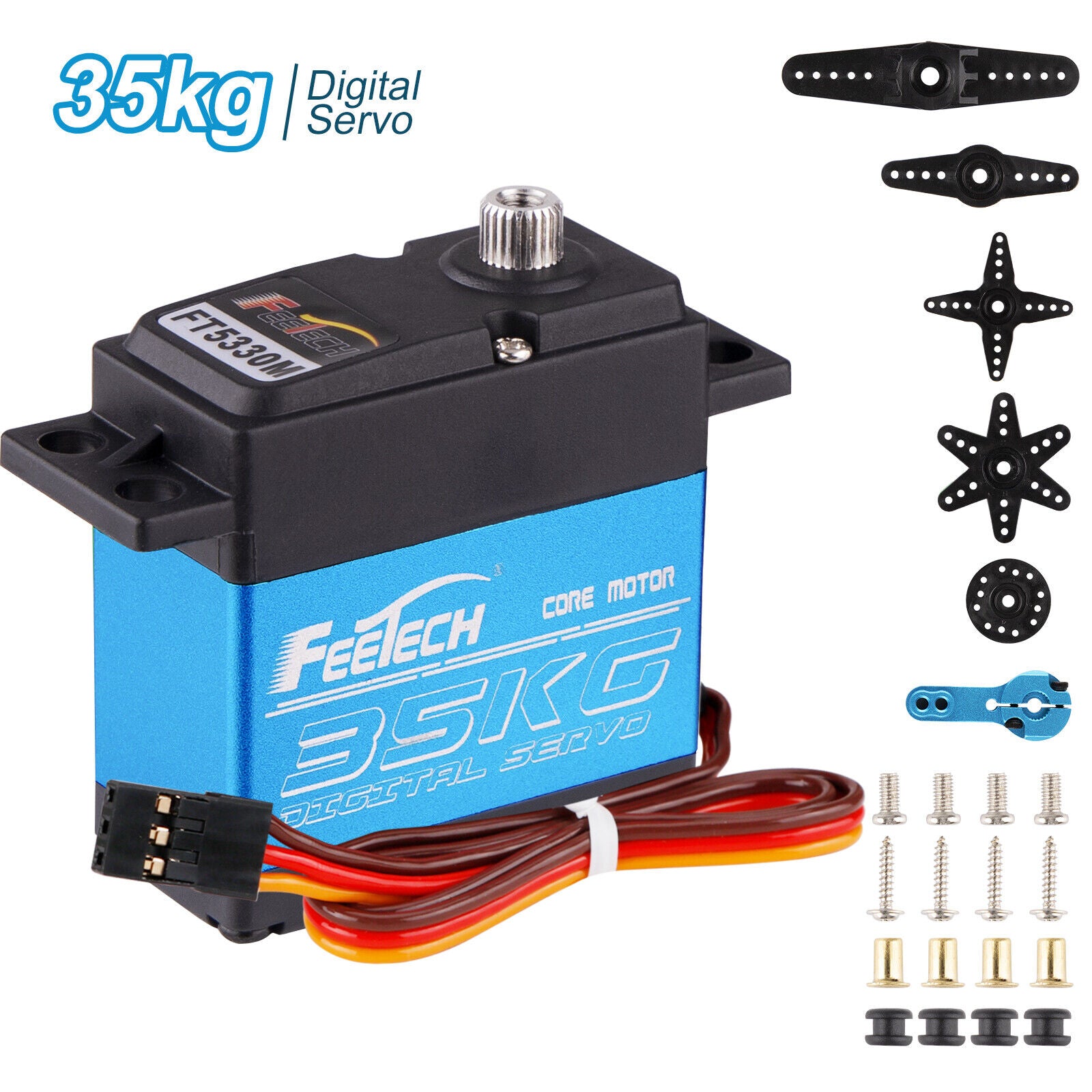

35KG servo:

    • Operating voltage range: 4-8.4 V
    • Operating speed (6 V): 0.238 seconds/60 ° (42 rpm)
    • Operating speed (7.4V): 0.192sec/60 ° (52RPM)
    • Stall torque (6V): 28.8kg/cm
    • Stall Torque (7.4V): 35.5kg/cm
    • Running current no load (6V): 150mA
    • Running current without load (7.4V): 180mA
    • Stall current at blocking (6V): 3.2a
    • Stall current when locked (7.4V): 3.9A
    • No-load current (at standstill): 6mA
    • Rated torque (6V): 9.5kg.cm
    • Rated torque (7.4V): 11.8kg cm
    • Rated current (6V): 1000mA
    • Rated current (7.4 V): 1200 mA
    • Control specification:
    • Control: PWM (pulse width change)
    • Pulse width range: 500-2500 μsec
    • Neutral position: 1500 μsec
    • Degree of travel: 180 ° (at 500-2500 μsec)
    • Dead band width: ≤ 4 μsec
    • Direction of rotation: counterclockwise (at 1500-2500 μsec)
    • Control: PWM (pulse width change)
    • Pulse width range: 500-2500 μsec
    • Neutral position: 1500 μsec
    • Degree of travel: 180 ° (at 500-2500 μsec)
    • Dead band width: ≤ 4 μsec

Scope of delivery :

  • 1 x piece 25KG / 3.5KG

25kg / 35Kg High Torque Motor Servo Waterproof Digital up to 360° Servo RC

Product form

Steering angle: 180 degrees Control by remote control Current: 4.8V/470mA 6.0V /650mA Load current: 4.8V/750mA 6.0V/950mA Dead band:2usec Lifespan:>15000 times... Read more

18 in stock Next-day delivery  Midweeks
 Monday to Friday we offer next day delivery if the product is on stock and exceptions on holidays.

Weekends
We do not offer deliveries on the weekends.

International
Depending on where you're located, we offer next day delivery. Check status on this link

€24,99 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Jun 27, 2026 14:00:00 +0200
    • Free shipping for all orders over 50€

    • Hassle-free return , 30-day return policy

    Description

    Steering angle: 180 degrees Control by remote control

    • Current: 4.8V/470mA 6.0V /650mA
    • Load current: 4.8V/750mA 6.0V/950mA
    • Dead band:2usec
    • Lifespan:>15000 times without load
    • Moving angle: 60 ° ± 10 °
    • Stick Type: MOS stick
    • Motor type: Cored motor
    • Potentiometer type: Direct drive
    • Signal Booster Type: Digital
    • Size: 40.5X20.2X40.3mm
    • Weight: 62g (without accessories)
    • Ball bearings: 2BB
    • Gearbox Material: Metal Gearbox
    • Case Material: PA66+fiber40%
    • Wire length: 260mm
    • Connector type: 26AWG,JR connector
    • Brown Wire: Negative
    • Red wire: Positive
    • Orange wire: signal
    • Application: RC car, RC airplane, helicopter

    25KG servo:

    • Storage temperature range: -30 °C ~ 80 °C
    • Operating temperature: -25 °C ~ 70 °C
    • Temperature range: -25 °C ~ 70 °C
    • Humidity range: 65% ± 10%
    • Size: 40.0*20.5*40.5mm
    • Weight: 56g ± 2g
    • Gearbox Type: 5 Metal
    • limit angle: 360 °
    • bearing: 2BB
    • Head gear spline: 25T Diameter: 5.9mm
    • Head type: plastic, POM
    • Case: Engineering plastic (PBT)+ aluminum alloy
    • Connector wire: 320mm ± 5mm
    • Motor: Carbon brush motor

    Steering angle: 180 degrees Control by remote control


    • Voltage: 4.8 V-7.2 V
    • no load speed: 0.18 sec/60 °-0.14 sec/60 °
    • Current: 140mA - 200mA
    • Peak Torque: 23.5kg.cm-26.8kg.cm
    • Current: 2600mA ± 10% - 3400mA ± 10%
    • Voltage range: 4.8-7.2 V
    • Command Signal: Pulse width change
    • Amplifier Type: Digital Controller
    • Pulse wide range: 500 ~ 2500usec
    • Neutral position: 1500usec
    • Running degree: 180 ° ± 3 ° (when 500 ~ 2500usec)
    • Dead band width: 5 usec
    • rotating direction counterclockwise: (when 1000 ~ 2000usec)


    Attention !!! 360° Servo: Rotate continuously either left or right


    35KG servo:

      • Operating voltage range: 4-8.4 V
      • Operating speed (6 V): 0.238 seconds/60 ° (42 rpm)
      • Operating speed (7.4V): 0.192sec/60 ° (52RPM)
      • Stall torque (6V): 28.8kg/cm
      • Stall Torque (7.4V): 35.5kg/cm
      • Running current no load (6V): 150mA
      • Running current without load (7.4V): 180mA
      • Stall current at blocking (6V): 3.2a
      • Stall current when locked (7.4V): 3.9A
      • No-load current (at standstill): 6mA
      • Rated torque (6V): 9.5kg.cm
      • Rated torque (7.4V): 11.8kg cm
      • Rated current (6V): 1000mA
      • Rated current (7.4 V): 1200 mA
      • Control specification:
      • Control: PWM (pulse width change)
      • Pulse width range: 500-2500 μsec
      • Neutral position: 1500 μsec
      • Degree of travel: 180 ° (at 500-2500 μsec)
      • Dead band width: ≤ 4 μsec
      • Direction of rotation: counterclockwise (at 1500-2500 μsec)
      • Control: PWM (pulse width change)
      • Pulse width range: 500-2500 μsec
      • Neutral position: 1500 μsec
      • Degree of travel: 180 ° (at 500-2500 μsec)
      • Dead band width: ≤ 4 μsec

    Scope of delivery :

    • 1 x piece 25KG / 3.5KG
